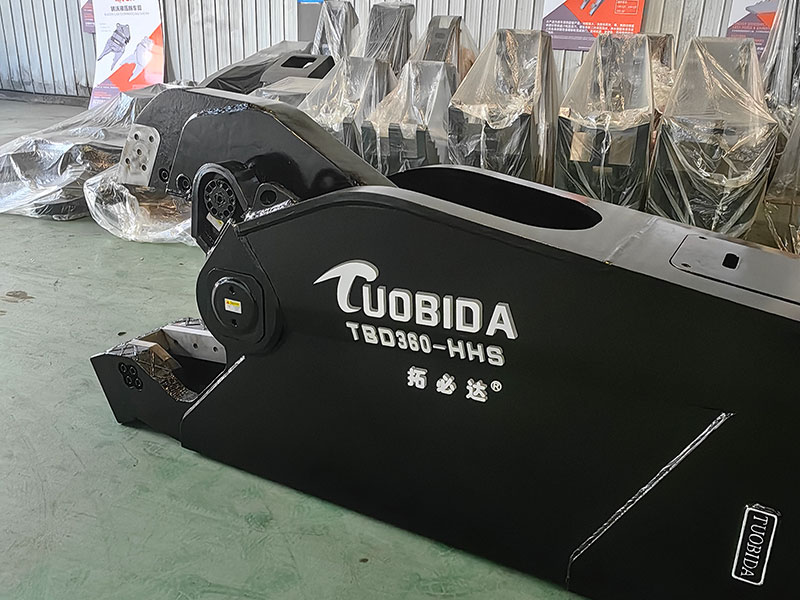

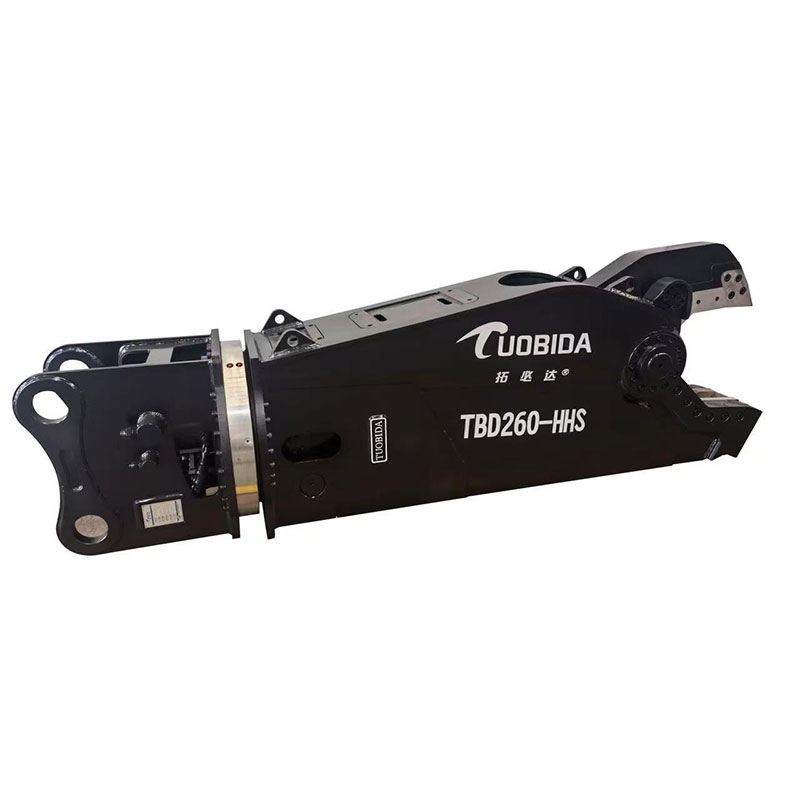

Heavy Duty Hydraulic Shears

This product is suitable for shearing scrapped automobile girders and long-term heavy-duty shearing operations of various H-beams, steel pipes, etc. Capable of 360-degree rotation and using a dedicated rotation motorIt can cut metal with load-bearing rotation at multiple angles.

Products

Low failure---Forged integrated cylinder rod, no risk of breakage.

High stability---It adopts patented sandwich main structure and high-strength steel plate to ensure that the main body does not deform.

Low cost---The blade can be used on multiple sides, reducing the cost of use.

Powerful---The large-diameter oil cylinder combined with the carefully designed blade structure has huge power and can easily cut metal.

Parameter annotation example:

Project	TORB1000-HHS	TORB3000-HHS	TORB5000-HHS	TORB7000-HHS	unit
Suitable For Excavators(for earm Installation)	20-26	30-38	39-50	50-65	T
Suitable For Excavators(boom Installation)	14-18	20-28	28-39	39-45	T
Length L1	2767	3400	3894	4073	Mm
Length L2	1005	1280	1428	1583	Mm
Length L3	720	870	900	982	Mm
Weight(approximately Does NotInclude Connecting Bracket)	2491	3740	5450	6500	Kg
Opening And Closing Working Pressure	32-35	32-35	32-35	32-35	Mpa
Opening And Closing Work Flow	150-200	200-250	250-300	280-380	L/min
Rotating Working Pressure	10-12	10-12	10-12	10-12	Mpa
Rotate Workﬂow	30-40	30-40	30-40	30-40	L/min
Opening Width A	474	617	660	775	Mm
Blade Length B	540	649	754	812	Mm
Shear Force F1	82	121	160	200	Tf
Shear Force F2	217	314	450	490	Tf
Shear Force F3	847	1134	1500	1900	Tf

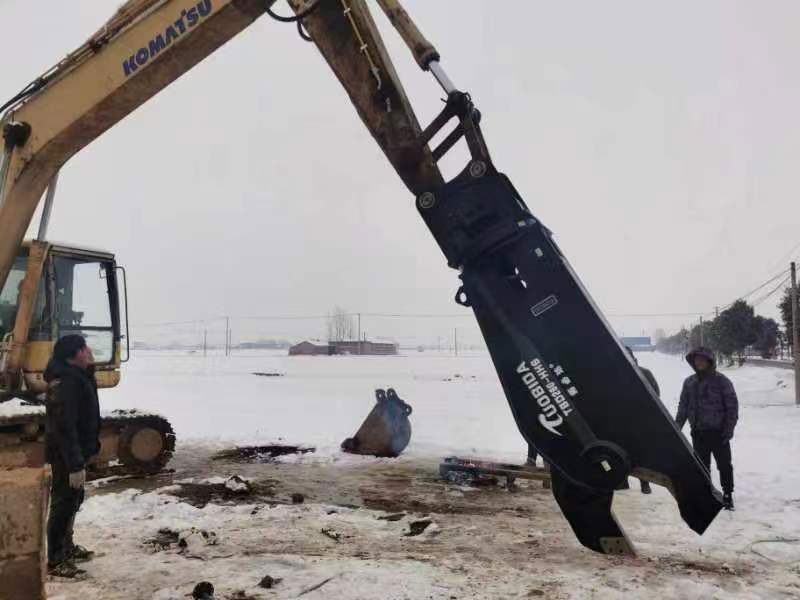

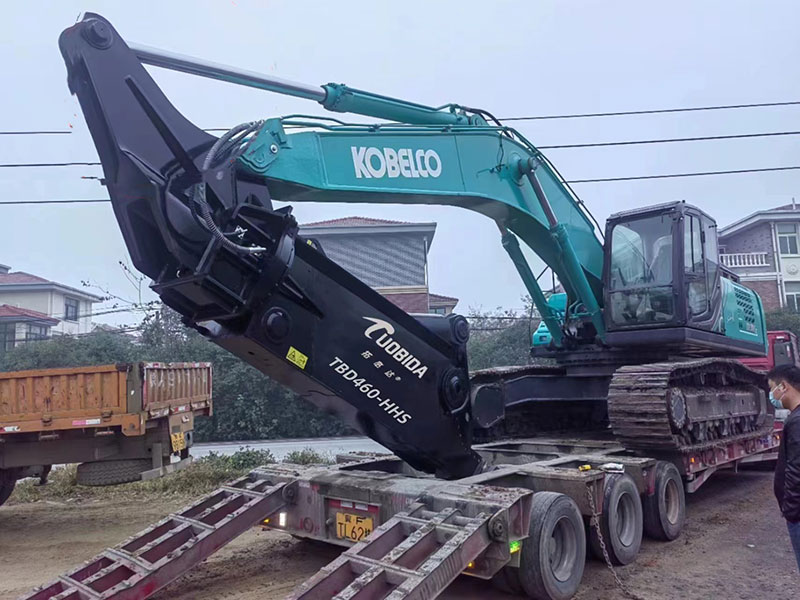

Application Scenario
