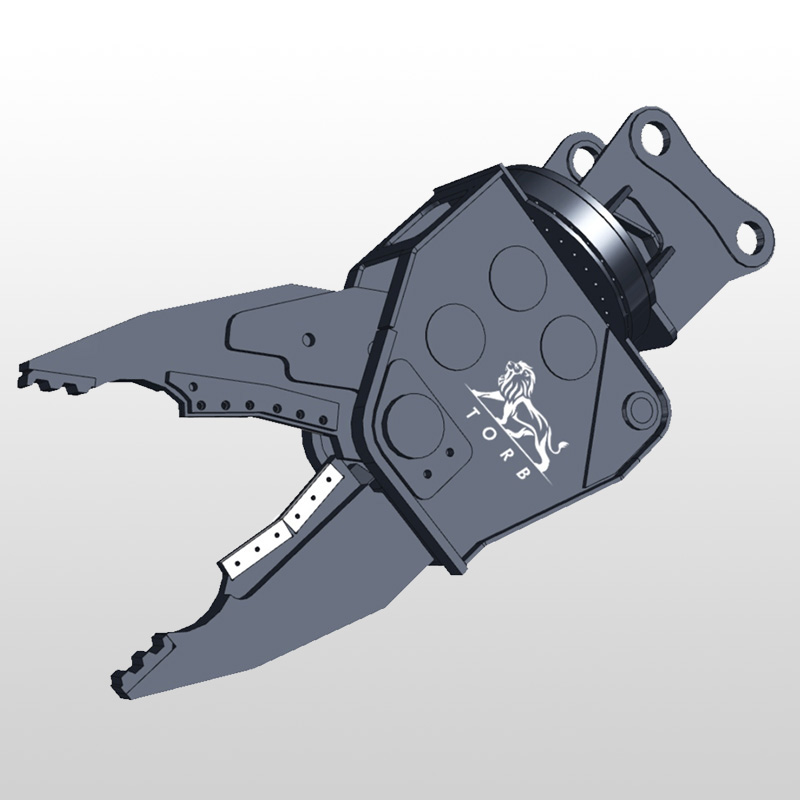

This product is suitable for dismantling various scrapped cars such as cars, vans, pickup trucks, minibuses, buses, light trucks below 5T, etc.
Multifunctional and powerful---it can realize the functions of clamping, tearing and cutting the car, and effectively and completely disassemble the car.
Good flexibility---can be rotated 360 degrees to flexibly realize waste classification.
Precision chuck---High-strength chuck that has been precisely processed to achieve full left and right engagement for effective clamping. And can be replaced to maintain optimal working condition.
Curved blades---4 curved blades form corresponding grooves, and the metal is sheared at the grooves to prevent slippage.

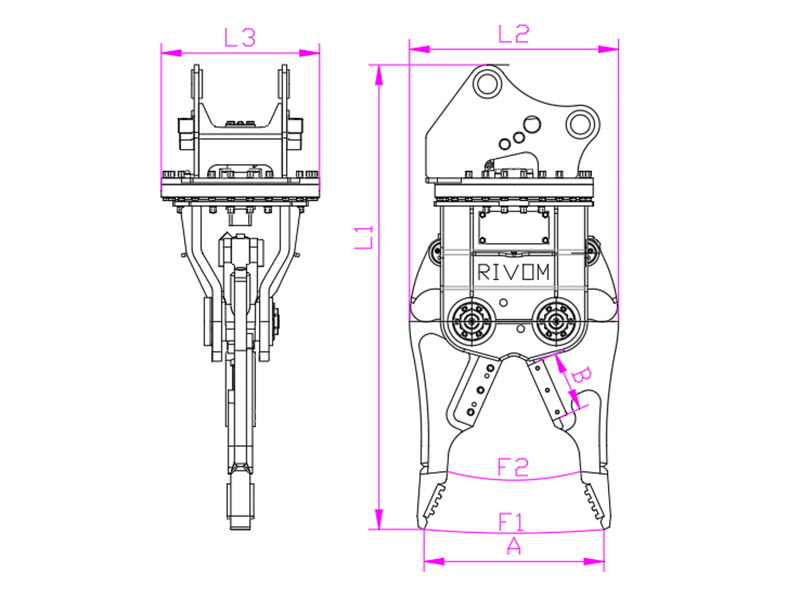

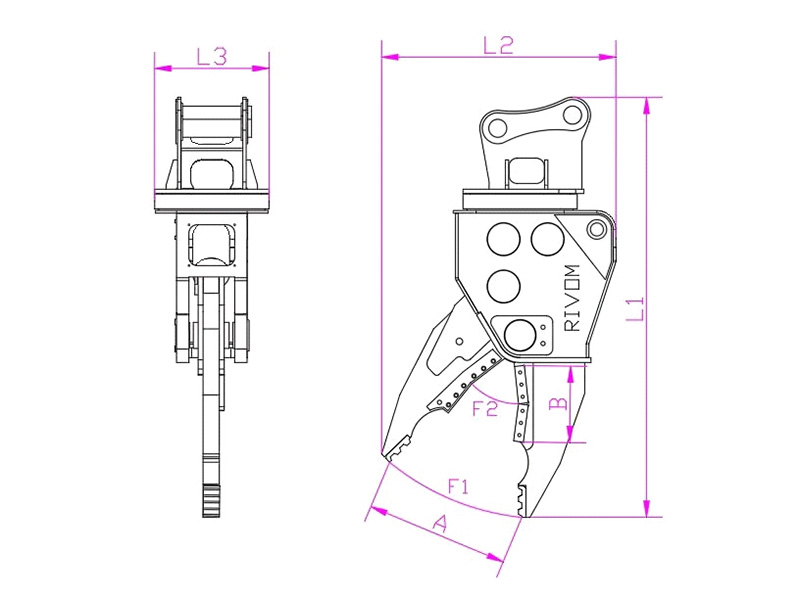

Parameter annotation example:
Project |
TORB800-SHS | TORB2000-SHS | Unit |
Suitable For Excavators |
12-15 | 18-26 | t |
Length L1 |
1931 | 2577 | mm |
Length L2 |
866 | 1435 | mm |
Length L3 |
656 | 700 | mm |
Weight(about) |
950 | 1750 | kg |
Opening And Closing Working Pressure |
32-35 | 32-35 | Mpa |
Opening And Closing Work Flow |
90-110 | 150-200 | L/min |
Rotating Working Pressure |
10-12 | 10-12 | Mpa |
Rotate Workflow |
30-40 | 30-40 | L/min |
Opening Height A |
746 | 878 | mm |
Blade Length B |
250 | 230+230 | mm |
Teeth Grip F1 |
9 | 26 | tf |
Shear Force F2 |
29 | 69 | tf |
